Louet Dobby Looms - Magic 40/70

Louet Dobby Looms - Magic 40/70

Louet

WP0117

***Delivery could take 1-3 months***

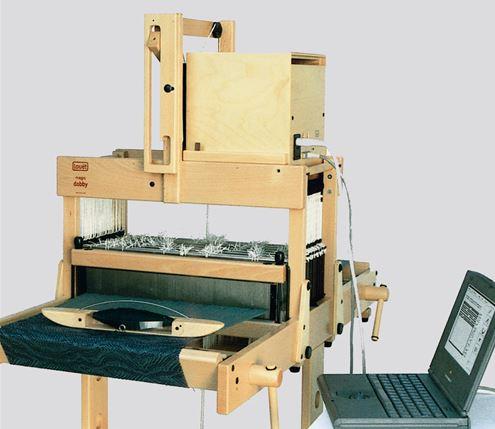

Please note that the image is shown with the Electronic Dobby which has to be purchased separately.

A dobby loom has a dobby mechanism, which is used to program the harness combinations for the weave pattern. Dobby is short for "draw boy" which refers... Read More

Size

Customer Reviews

Customer Reviews

Based on 0 reviews
5 Star
0%
0
4 Star
0%
0
3 Star
0%
0
2 Star
0%
0
1 Star
0%
0
Write a Review Ask a Question
  • Reviews (0)
  • Questions (0)

Thank you for submitting a review!

Your input is very much appreciated. Share it with your friends so they can enjoy it too!

Product Details

***Delivery could take 1-3 months***



Please note that the image is shown with the Electronic Dobby which has to be purchased separately.

A dobby loom has a dobby mechanism, which is used to program the harness combinations for the weave pattern. Dobby is short for "draw boy" which refers to the weavers helper who was used to control the warp thread by pulling on draw threads. The dobby mechanism replaces the treadle/lam combination of the traditional floor looms. The performance of a multi-harness loom is vastly improved by using a dobby mechanism, as it overcomes the major problems associated with the use of a large number of treadles. A dobby loom allows you to select the combination of harnesses for every shed opening you wish to make. The great advantage of a dobby loom is that it avoids the necessity and the labor involved in making multiple tie-ups to treadle positioned underneath a loom. An investment in a Louet Dobby ensures many years of comfortable and productive weaving. The mechanical dobby is a program bar with pegs system. The numbered holes in the program bars correspond with harnesses of the loom. If you want a harness to be raised, you place a peg in the corresponding hole of the program bar. Your series of program bars can be as long as you like; however, if the number of program bars becomes very large, you may want to consider an electronic dobby. The electronic dobby will give you almost unlimited harness combinations using a computer and software from Fiberworks PCW, Patternland, Weavemaker, Weave It, WeavePoint or Pro Weave, which all work with the electronic interface.

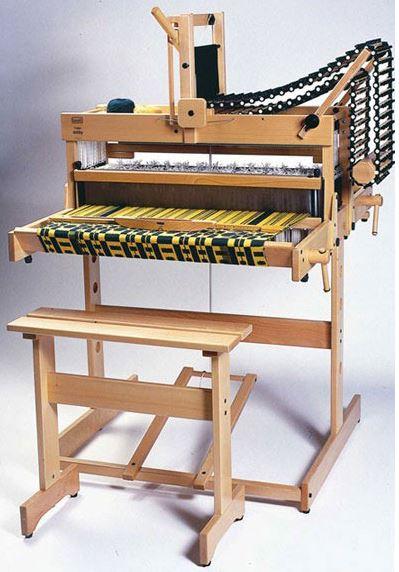

Magic Dobby (MD) is a very portable loom. The loom can be used as a table loom by using a lever to open the shed, or mount it on the floor stand and use a treadle to open the shed. The front and rear sections fold up towards the castle, for easy storage or travel. You must choose between a mechanical and electronic dobby. Magic Dobby is available in 40 cm (15 3/4") and 70 cm (27 5/8") weaving width and is made of lacquered beech.

Package Includes:

  • castle section (assembled)
  • floor stand with treadle
  • swivel (pivot) beater system
  • raddle
  • 1 stainless steel reed 40-10 (metric)
  • 600/800 Texsolv heddles
  • lease and tie-up sticks
  • sixteen warp sticks.

Dimensions (wxdxh):

  • Magic Dobby 40 - 58 x 100 x 140 cm (22 3/4" x 39 3/8" x 55")
  • Magic Dobby 70 - 88 x 100 x 140cm (34 5/8" x 39 3/8" x 55")

Weight:

  • Magic Dobby 40 - 25 kg (55 lb),
  • Magic Dobby 70 - 33 kg (73 lb)

Available Accessories:
- Bench - height 57 cm (22 3/8")
- Second warp beam with back beam
- Standing beater
- Flying Dutchman shuttle
- Mechanical dobby, including 30 program bars
- Program bars per ten
- Dobby chain weight
- Electronic dobby
